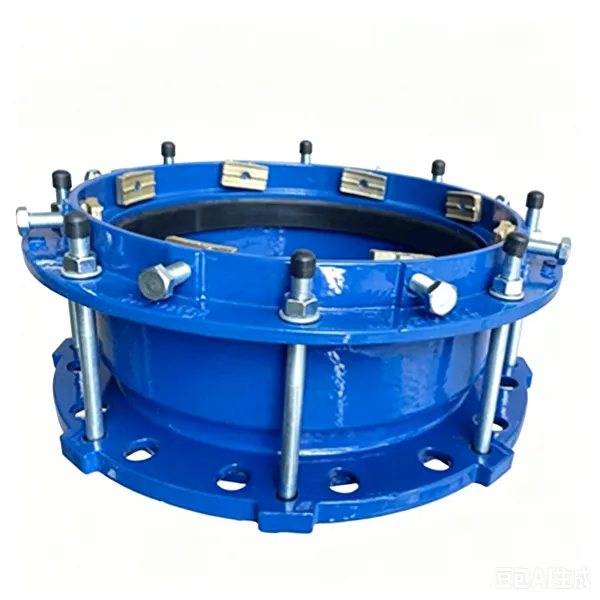

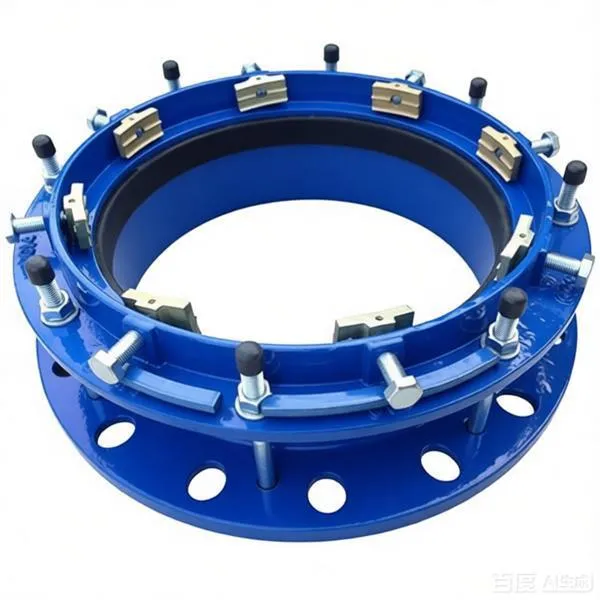

Restrained Flange Adaptor For PE

Restrained Flange Adaptor For PE

Describe：
Standard: ISO2531，EN545，EN14525

Pressure: PN10/PN16

Body material: Ductile iron or cast iron

Coating: FBE ( fusion bonded epoxy) coating or Epoxy painting, Rilsan（Nylon 11）

Gaskets: NBR or EPDM

Gripping teeth material: Brass.

Bolts and Nuts: Carbon steel with galvanized zinc plated G4.8/G8.8, SS304/SS316 or Hot dipped

Package: wooden cases and protection layer.

Application: Restrained flange adaptorg is used for connecting PE pipe. The restrained brass can fastend the pe pipe better, they perform better work than quick adaptor for PE pipes.
