Product Details

Introduction

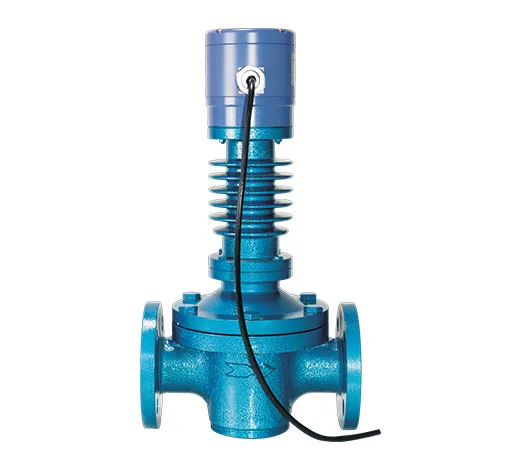

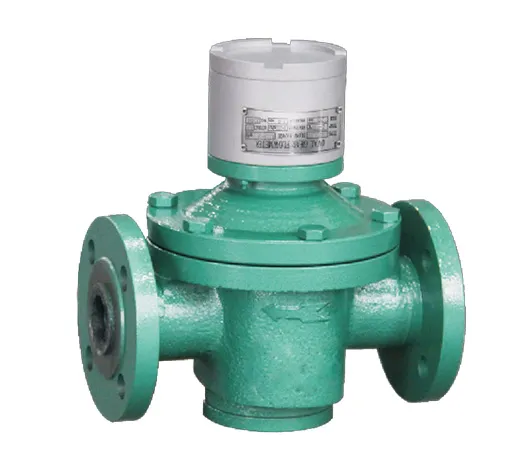

Oval gear flow meter is one of positive displacement flow meter and is mainly composed of meter shell, oval gear rotor and converter. It is an instrument used for continuous or discontinuous metering and control of liquids in the pipeline. It has advantages of large metering range, excellent accuracy, small pressure loss and high viscosity adaptability.

It has good performance on measuring high-temperature and high-viscosity liquids. It is applicable to the calibration and metering of crude oil, chemical, chemical fiber, traffic, commerce, food, medicine and health, scientific research and military etc.

Advantages

QTLC Positive Displacement Oval Gear Flow Meter technology provides a number of advantages as belows:

High Accuracy of Reading, 0.5% standard and optional 0.2% of reading.
Excellent Repeatability
Minimal Maintenance
Suitable for numerous fluids including Water, oil and High Viscous Fluids
Ease of Installation, No Flow conditioning needed
Good Turn Down Ratios
Accuracy unaffected by changes in Viscosity
No power required with pulse or mechanical register
Industrial Heavy Duty Robust Design
Output options including: Pulse, 4-20mA, RS485; Intrinsically Safe & Explosion Proof

Application

It is widely used in liquid flow control in various industrial fields and is suitable for various types of liquid measurement, such as crude oil,diesel, Gasoline, etc. It has the characteristics of large range, high precision,convenient use and maintenance.
Different manufacturing materials are selected to meet the liquid flow measurement in various fields such as petroleum, chemical industry, medicine, food, metallurgy, electric power, and transportation.

Technical Data

Parameters:

Transmitter Type	Pointer Display; Pointer with zero returning; Pointer display with Output; LCD
Medium	Fuel Oil; Petroleum; Petroleum Products; Vegetable Oil; Food; Chemical
Accuracy	±0.2%; ±0.5%
Nominal Diamete	DN8~DN200 mm
Nominal Pressure	PN1.6~6.3MPa
Medium Temperature	-10 °C~280 °C
Medium Viscosity	2~3000mPa•s
Power Supply	12V DC; 24V DC
Output Signal	Pulse; 4~20mA.DC; RS485
Display	Accumulative Flow, Single Measurement(Mechanical Dial); Remote transmission of total and instantaneous flow
Explosion Proof	Flame-proof Type, ExdIIBT4
Ambient Temperature	-20~55°C
Sensor Material:	Cast Iron; Cast Steel; Stainless Steel
Sensor Connection	Flange, Screw, Sanitary Tri-clamp

Flow Range for Different Model

Cast Iron type (A), Cast Steel type (E), Stainless Steel type (B)

High temperature Cast Iron (TA), Cast Steel type (TE), Stainless Steel type (TB)
High viscosity Cast Iron (NA), Cast Steel type (NE)

Model Selection

QTLC

xxx

Size (mm)

DN8~DN200mm

(1/4”~4”)

Media viscosity

2~200 mPa·s

200~1000 mPa·s

1000~2000 mPa·s

3000~10000 mPa·s

Accuracy

±0.5% (Standard)

±0.2%

Body material

Cast iron

Cast steel

SS304

Media

Temperature

20℃~+100℃ (Standard )

+100℃~+250℃

Display

Pointer + Zero return

LCD + Zero return

Power Supply

Mechanical type

24VDC

12VDC

Output

Pulse

4-20mA

Communication

RS485

HART

Connection

Flange (DN8~DN200

DIN: PN10, PN16, PN25, PN40

D**

ANSI:150#, 300#, 400#, 600

A**

JIS:10K, 20K, 30K, 40K

J**

Tri-clamp (DN8~DN80)

Thread (DN8~DN150)

Ex-proof

With

Without

Dimensions

DN10~DN40

DN50~DN100

DN150, DN200

(A) Cast iron type; Cast iron high viscosity type; High temperature cast iron type; Other cast iron type (Units: mm)

DN	L	H	A	B	D	D1	N	Φ
10	150	100	165	210	90	60	4	14
15	170	118	172	225	95	65	4	14
20	200	150	225	238	105	75	4	14
25	260	180	232	246	115	85	4	14
40	245	180	249	271	145	110	4	18
50	340	250	230	372	160	125	4	18
65	420	325	270	386	180	145	4	18
80	420	325	315	433	195	160	8	18
100	515	481	370	458	215	180	8	18
150	540	515	347	557	280	240	8	23
200	650	650	476	720	335	295	12	23

Note: Above oval gear flow meter drawing is DIN PN16 flange, other standards can be provided on request.

(B) Cast steel type, steel high viscosity type, high temperature steel type Units: mm

DN	L	H	B	A	D	D1	N	b
15	200	138	232	180	105	75	4	14
20	250	164	220	160	125	9o	4	18
25	300	202	252	185	135	100	4	18
40	300	202	293	208	165	125	4	23
50	384	262	394	312	175	135	4	23
80	450	337	452	332	210	170	8	23
100	555	442	478	310	250	200	8	25
150	540	510	557	347	300	250	8	26
200	650	650	720	476	36	310	12	26

Note: Above oval gear flow meter drawing is DIN PN16 flange, other standards can be provided on request.
Cast iron, cast steel oval gear flow meters type high-temperature size: DN15 ~ DN25, A, B according to the table, data size plus 160mm extension tube heat: DN40 ~ DN80, A, B-size table size increases by thermal extension of 300mm pipe, rest size of the corresponding size table Ibid

DN	L	H	B	A	D	D1	N	db
15	208	120	228	172	95	65	4	14
20	236	150	238	225	105	75	4	14
25	287	195	246	232	115	85	4	14
40	265	178	349	265	145	110	4	18
50	265	178	349	265	160	125	4	18
65	365	260	436	319	180	145	4	18
8o	420	305	459	324	200	160	8	18
100	515	400	554	373	220	180		18
150	540	515	607	397	280	240	8	23
