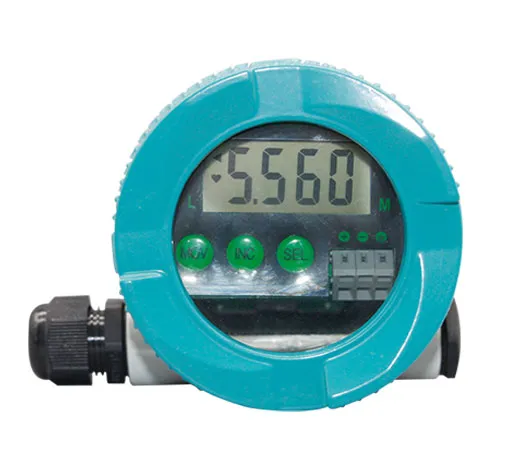

High Precision Level Meter

Level Range: 4,6,8,10,12,15,20,30m

Accuracy: 0.5%-1.0%

Resolution: 3mm or 0.1%

Display: LCD Display

Analog Output: Two Wires 4-20mA/250Ω Load

Product Details

Introduction

The ultrasonic velocity in gas is influenced by the gas temperature,So the level meter need to detect the gas temperature at work. So the material level meter need to detect the gas temperature at work,compensation for sound velocity.
The sensor of the meter pulses in the direction of the product surface. There, they are reflected back and received by the sensor.

Advantages

High Precision Level Meter Advantages
Non-contact, maintenance-free measurement.
Measurement unaffected by media properties, like dc value or density.
Calibration without filling or discharging.
Self-cleaning effect due to vibrating sensor diaphragm.

Application

High Precision Level Meter Application
To ensure that the ultrasonic transmission to the measured ultrasonic liquid level or material surface occasion.
Suchas: storagetank, chute, pool, Wells, drains, meteringbox, granaryetc.

Technical Data

Table 1: High Precision Level Meter Technical Parameters

Function	Compact Type
Level Range	4,6,8,10,12,15,20,30m
Accuracy	0.5%-1.0%
Resolution	3mm or 0.1%
Display	LCD Display
Analog Output	Two Wires 4-20mA/250Ω Load
Power Supply	DC24V
Environmental Temperature	Transmitter -20~+60℃ , Sensor -20~+80℃
Communication	HART
Protection Class	Transmitter IP65(IP67 Optional),Sensor IP68
Probe Installation	Flange, Thread

Table 2: High Precision Level Meter Model Selection

Measure Range

   4   4m
6   6m
8   8m
12 12m
20 20m
30 30m

License

P Standard Type(Non ex-proof)
I Intrinsically safe (Exia IIC T6 Ga)

Energy Transducer Material/Process Temperature/Protection Grade

A ABS/(-40-75)℃/IP67
B PVC/(-40-75)℃/IP67
C PTFE/(-40-75)℃/IP67

Process Connection/Material

G Thread
D Flange /PP

Electronic Unit

2 4~20mA/24V DC Two Wire
3 4 20mA/24V DC /HART Two Wire
4 4-20mA/24VDC/RS485 Modbus Four Wire
5 4-20mA/24VDC/Alarm Output Four Wire

Shell / Protection Grade

L Aluminum / IP67

Cable Entry

N 1/2 NPT

Programmer/Display

1 With Display

Installation

High Precision Level Meter Installation
1:Keep Ultrasonic Level Transmitter perpendicular to liquid.
2:The transducer should not be mounted too close to the tank wall, the bracket can cause strong false echoes
3:Mount the transducer away from the inlet to avoid false echoes.
4:The transducer should not be mounted too close to the tank wall, the build-up on the tank wall cause false echoes.
5:As is illustrated by the figure on the below, the transducer should be mounted on the top of guide tube to prevent the false echoes from turbulence and foam. The guide tube should come with a vent hole at top of the tube to allow the liquid vapor go out of the tube.
6:When you mount the transducer on the solid tank, the transducer must point to the tank outlet.
